Digital feed control motor is installed with direct-drive servomotor. The sewing machine has been integrated with the operation panel and the control box for ease of use. All of the L-1 series adopt the direct drive system.
Model name |
Application |
Max. Sewing Speed |
Max. Stitch Length |
Lift of the presser foot |
Needle |
Lubrication |
Lubricating oil |
Power consumption |
Power requirement |
|---|---|---|---|---|---|---|---|---|---|
| L-1-B, L1-M | Medium-weight | 4,500sti/min* | 5 mm | By hand: 5.0mm / By knee: 13mm | DB×1 (#14) #11-#18 | Automatic | JUKI MACHINE OIL 7 (equivalent to ISO VG7) | 480VA | Single-phase 220V/Single-phase 110V |
| L-1-H | Heavy-weight | 3,500sti/min* | 5 mm | By hand: 5.0mm / By knee: 13mm | DP×5 (#21) #16-#21 | Automatic | JUKI MACHINE OIL 7 (equivalent to ISO VG7) | 480VA | Single-phase 220V/Single-phase 110V |

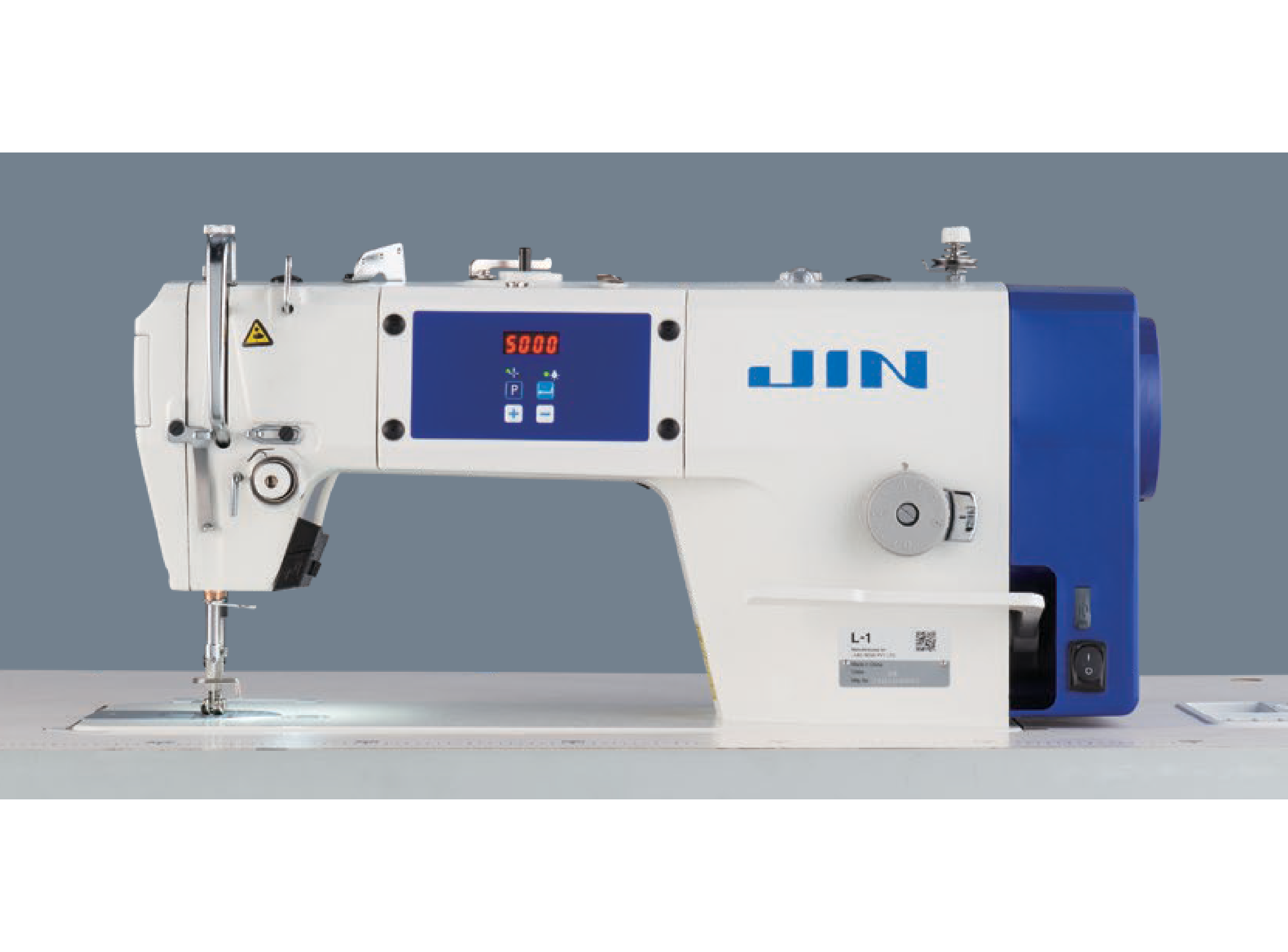

The sewing machine has been integrated with the operation panel and the control box for ease of use. All of the L-1 series adopt the direct drive system. As a result, the sewing machine starts up swiftly and promises increased stop accuracy, thereby demonstrating improved thereby demonstrating improved responsiveness.
Since the sewing machine has no V-belt, the operator needs neither to clean up shavings from the V-belt, nor adjust the V-belt tension.

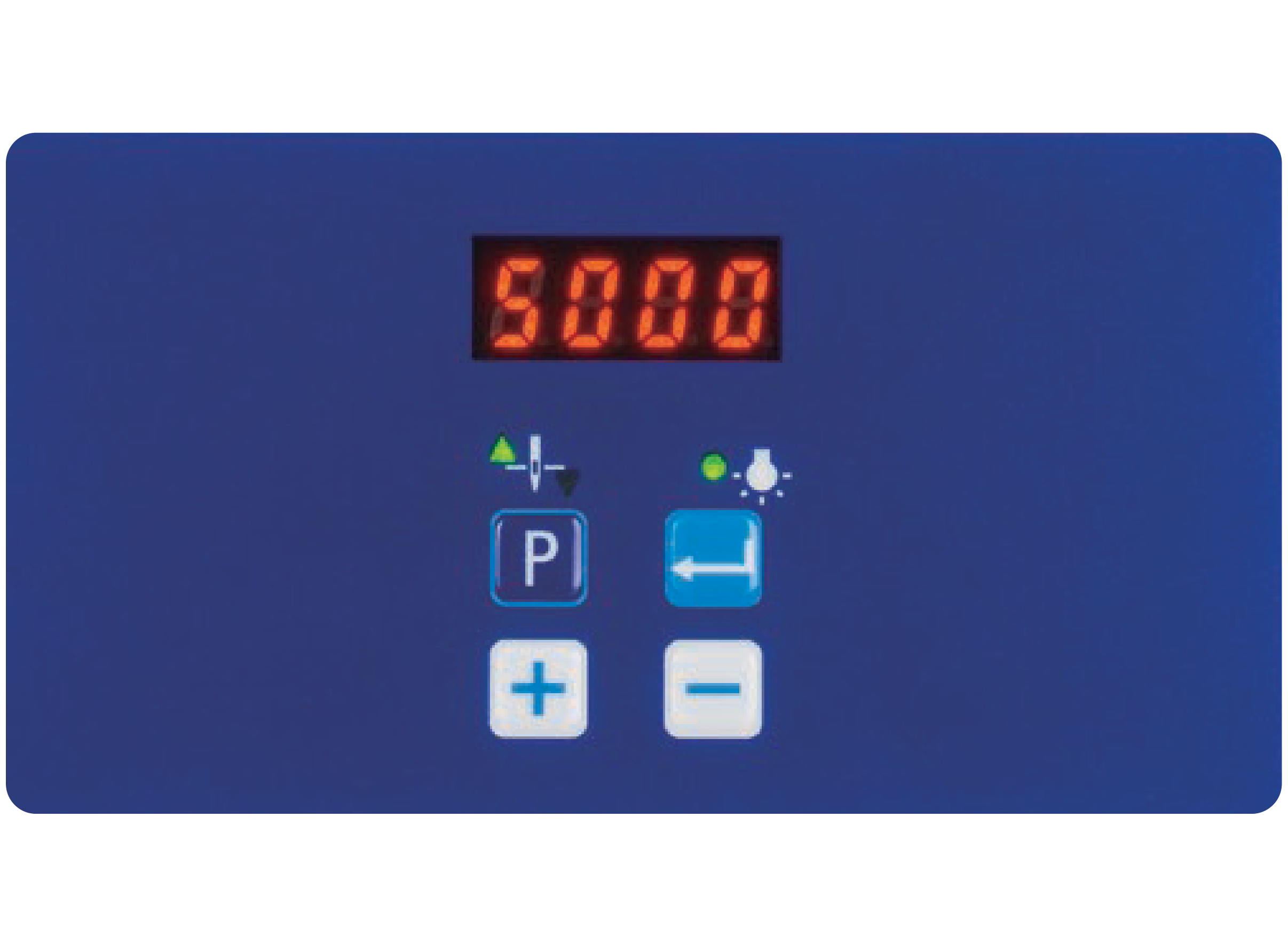

The operation panel has a simple design such as switching the vertical position of the needle and setting the maximum sewing speed.

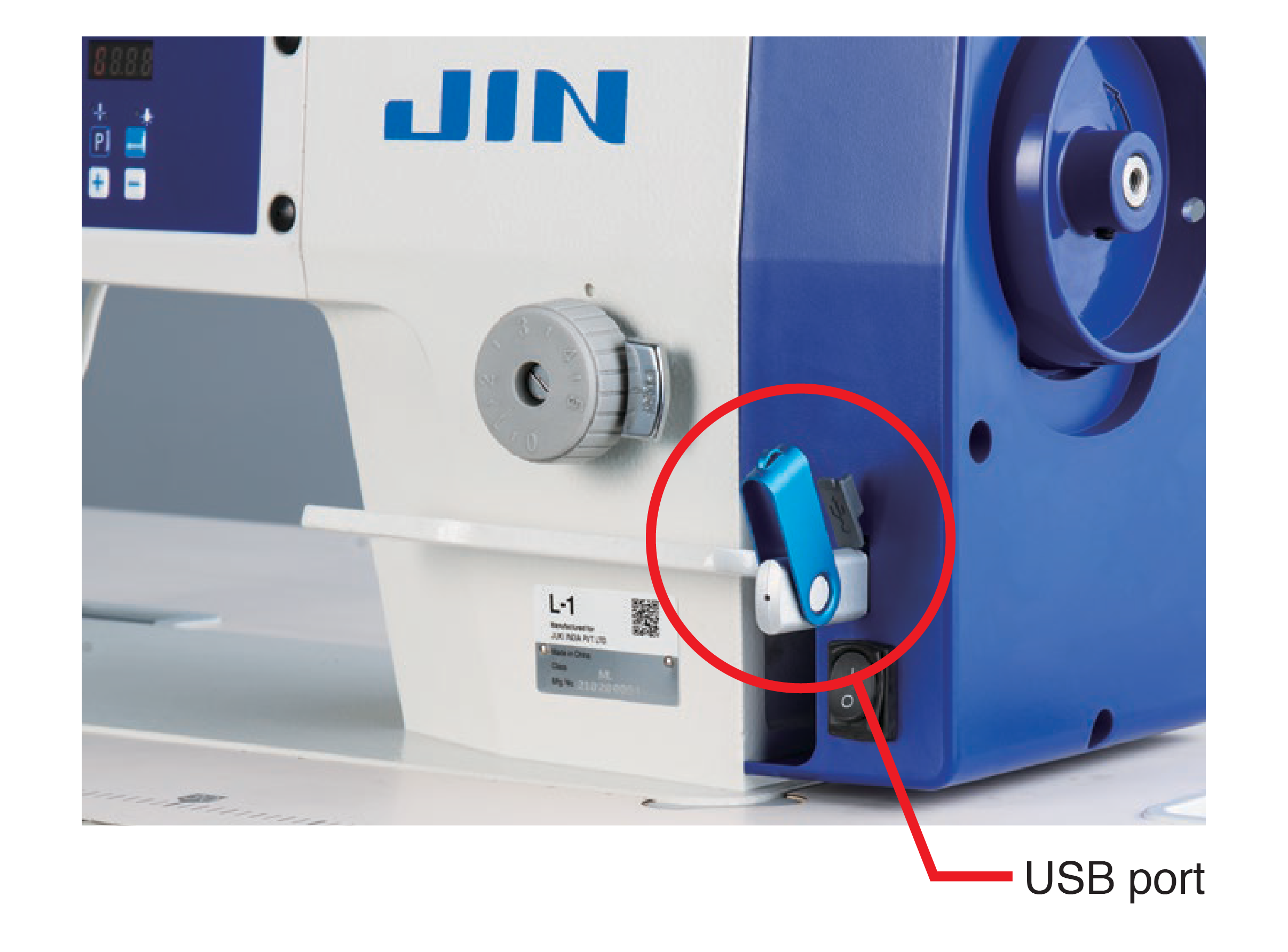

The L-1 series is equipped as standard with a USB port that can be used to charge smartphones, etc.

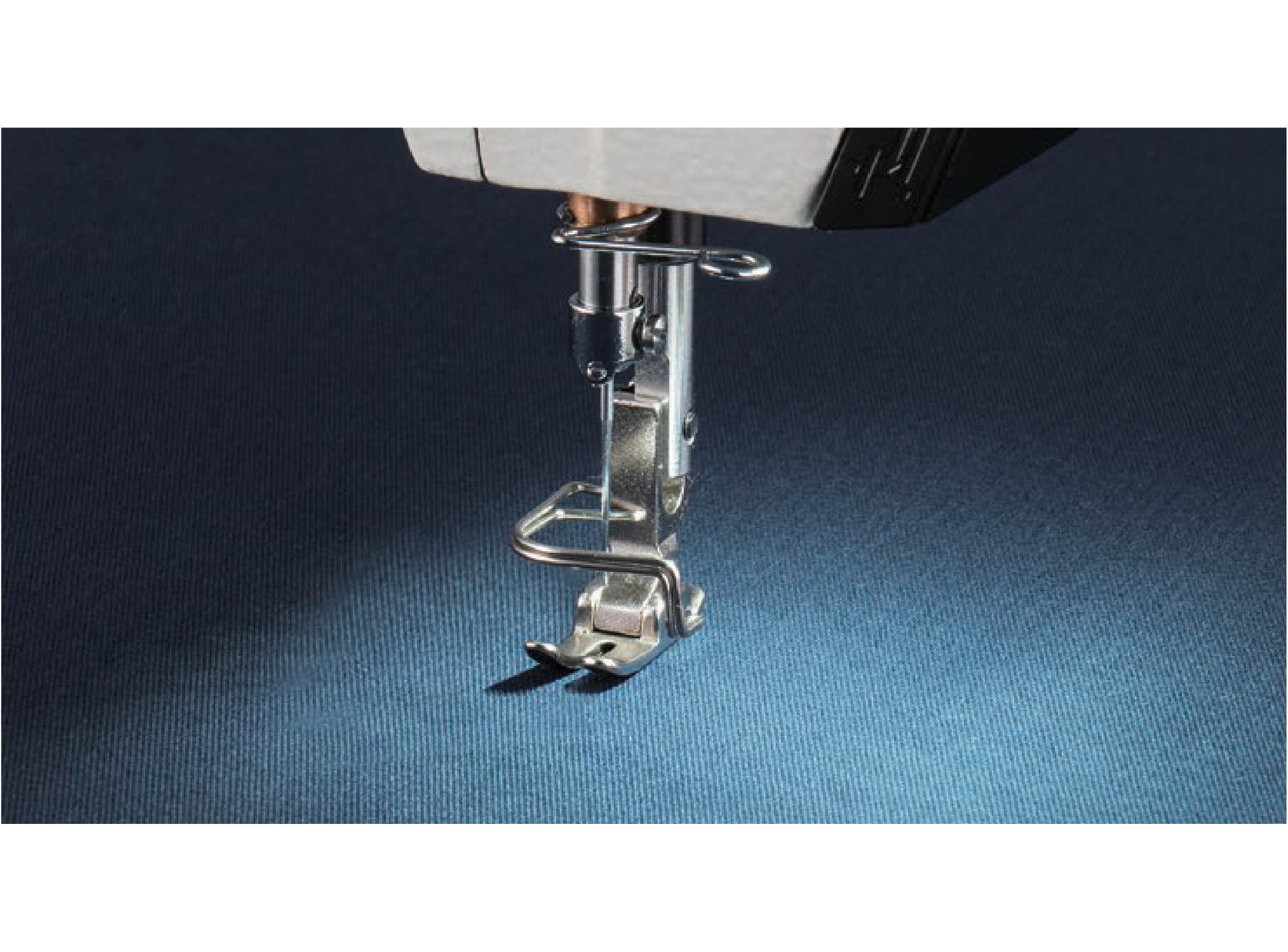

The LED light is located on the underside of the arm jaw. It reduces operator fatigue and improves work efficiency. It is provided as standard for all models ofthe L-1 Series.
