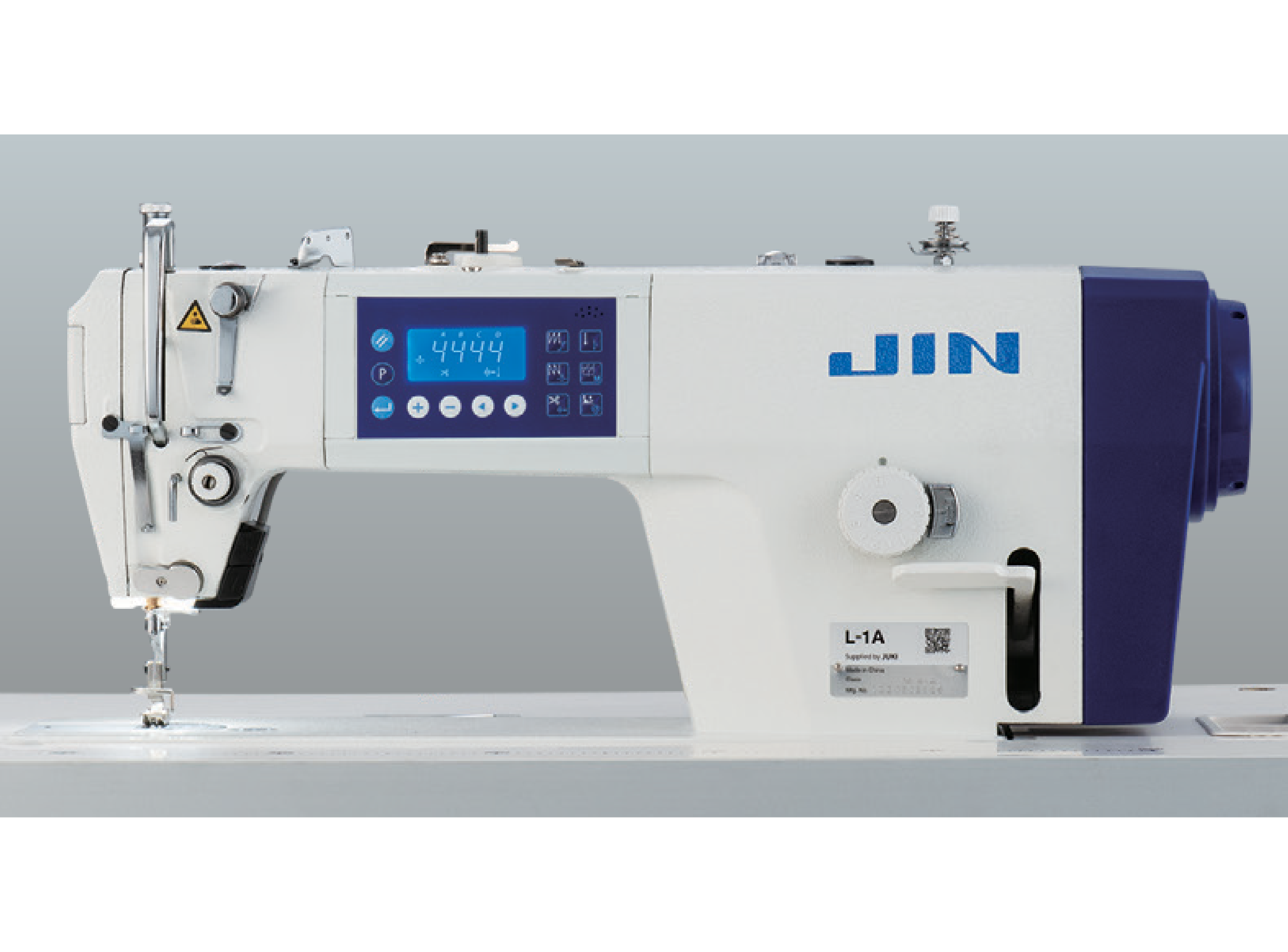

L-1A
Direct-drive, 1-needle, Lockstitch Machine with Automatic Thread Trimmer (Nipper and Automatic reverse feed device)
Direct-drive, 1-needle, Lockstitch Machine with Automatic Thread Trimmer (Nipper and Automatic reverse feed device)
Digital feed control motor is installed with direct-drive servomotor. The sewing machine has been integrated with the operation panel and the control box for ease of use. All of the L-1 series adopt the direct drive system.
Model Name |
Application |
Max. Sewing Speed |
Max. Stitch Length |
Lift of Presser Foot |
Needle |
Nipper |
Lubrication |
Lubricating Oil |
Power Consumption |
Power Requirement |
|---|---|---|---|---|---|---|---|---|---|---|
| L-1A-M | Medium-weight | 5,000sti/min* | 5 mm | By hand: 5.0mm / By knee: 13mm | DB×1 (#14) #11-#18 | Provided | Automatic | JUKI MACHINE OIL 7 (equivalent to ISO VG7) | 488VA | Single-phase 220V/Single-phase 110V |
| L-1A-H | Heavy-weight | 3,500sti/min* | 5 mm | By hand: 5.0mm / By knee: 13mm | DP×5 (#21) #16-#21 | Provided | Automatic | JUKI MACHINE OIL 7 (equivalent to ISO VG7) | 488VA | Single-phase 220V/Single-phase 110V |

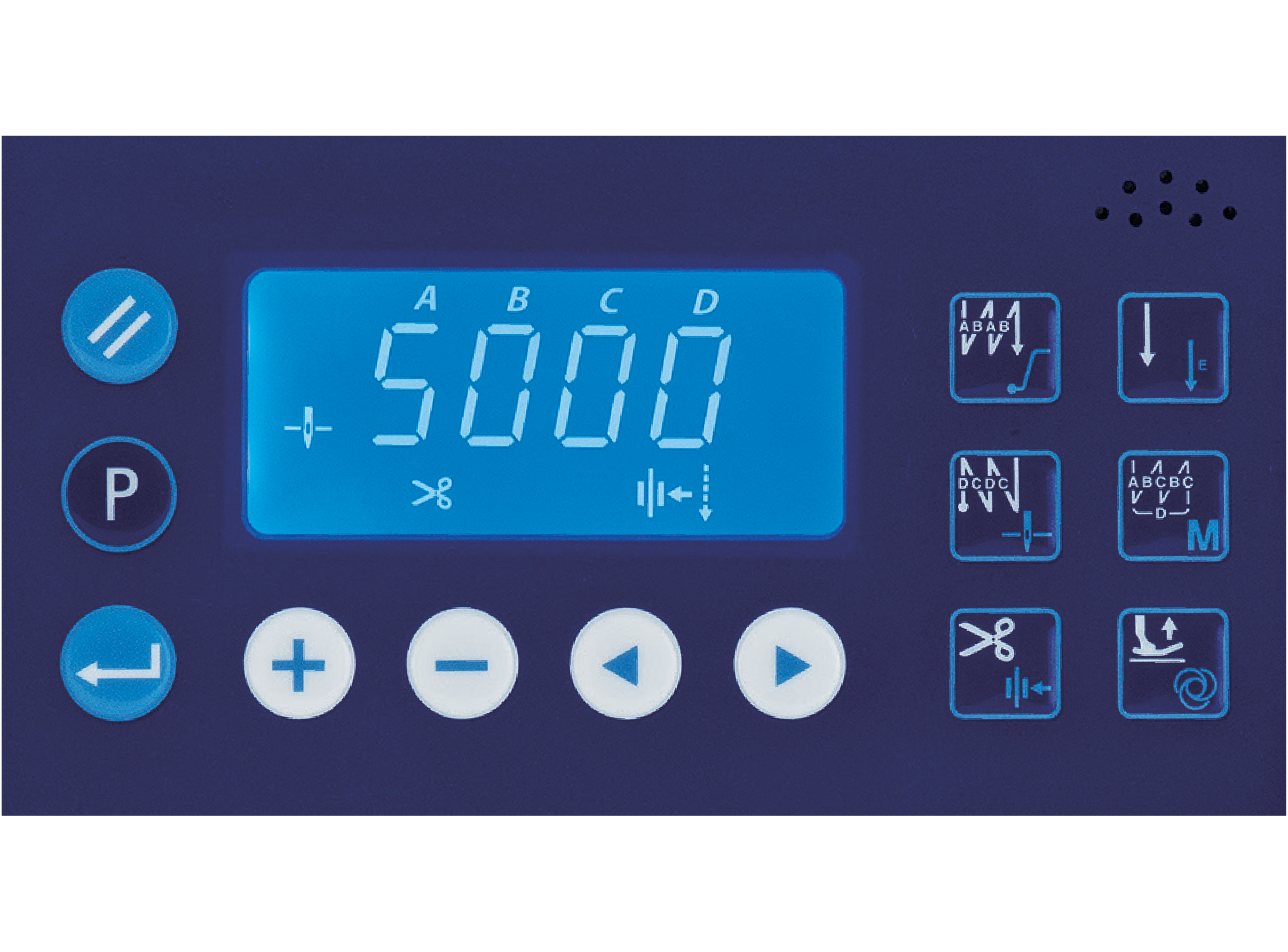

The sewing machine has been integrated with the operation panel and the control box for ease of use. All of the L-1A series adopt the direct drive system. As a result, the sewing machine starts up swiftly and offers improved stop accuracy and responsiveness.

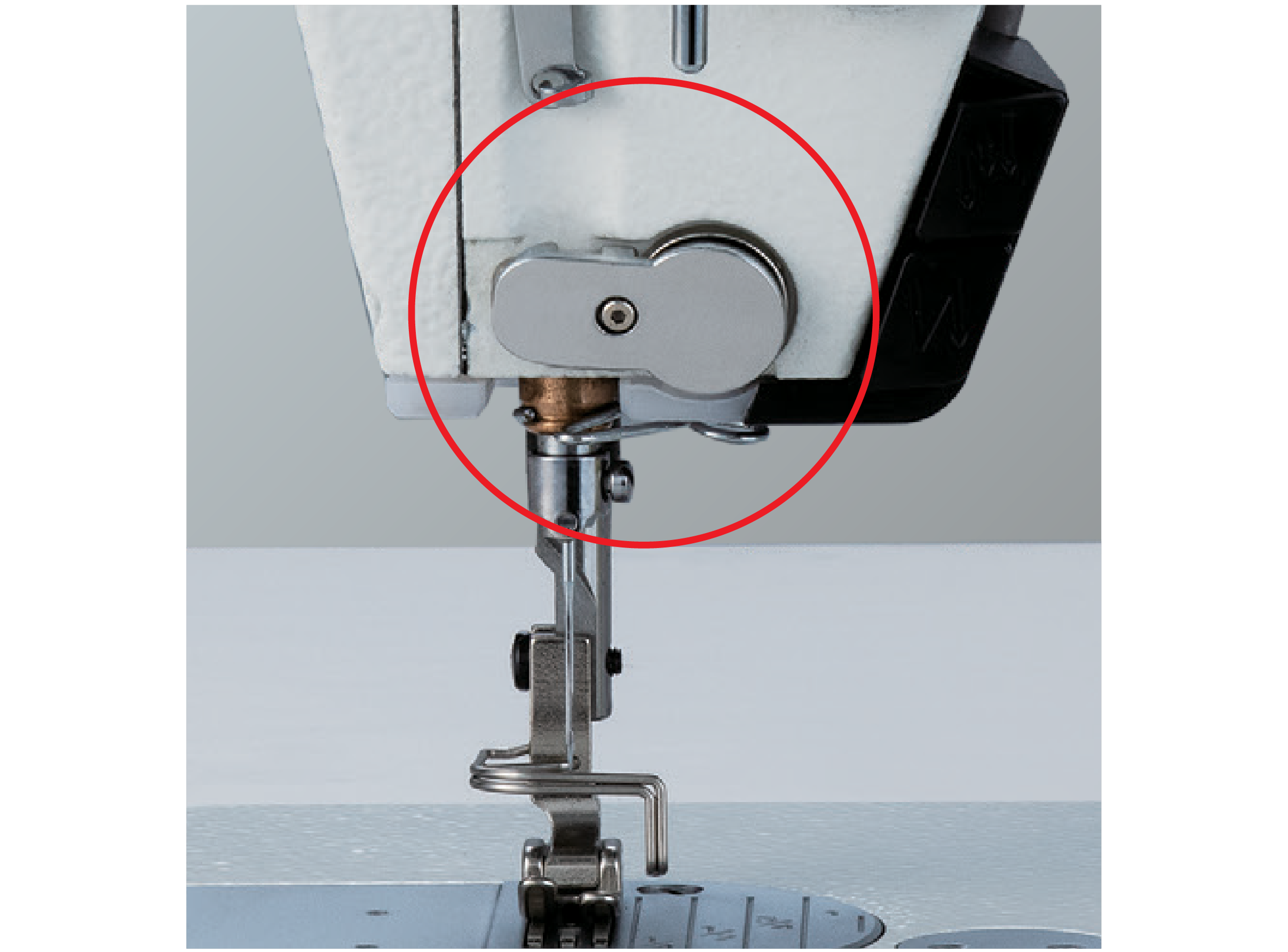

This device pulls the needle thread into the wrong side of the material at the beginning of sewing, thereby ensuring more beautifully-finished seams.
Since the sewing machine has no V-belt, the operator needs neither to clean up shavings from the V-belt, nor adjust the V-belt tension.

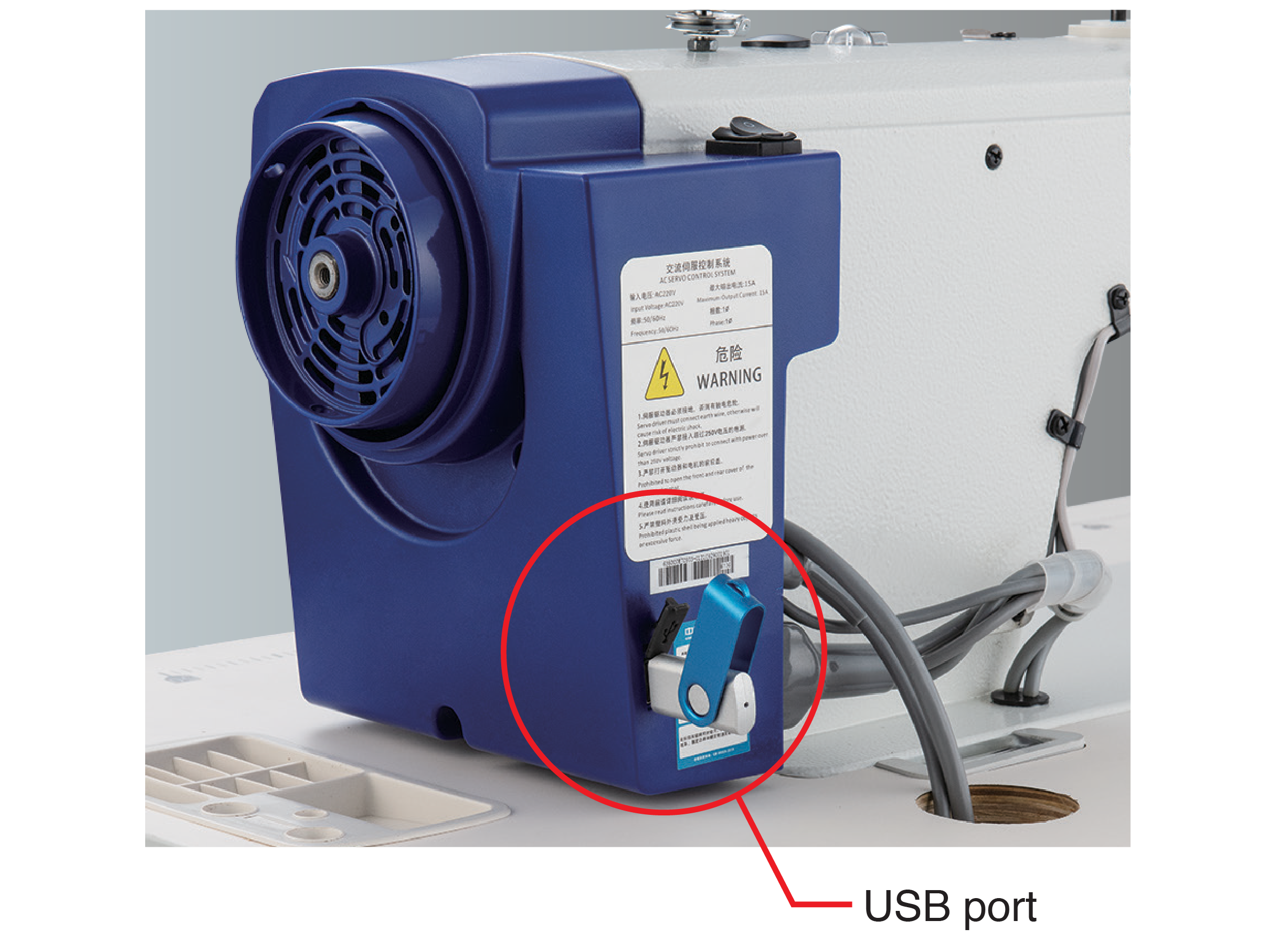

The L-1A series is equipped as standard with a USB port that can be used to charge smartphones, etc.

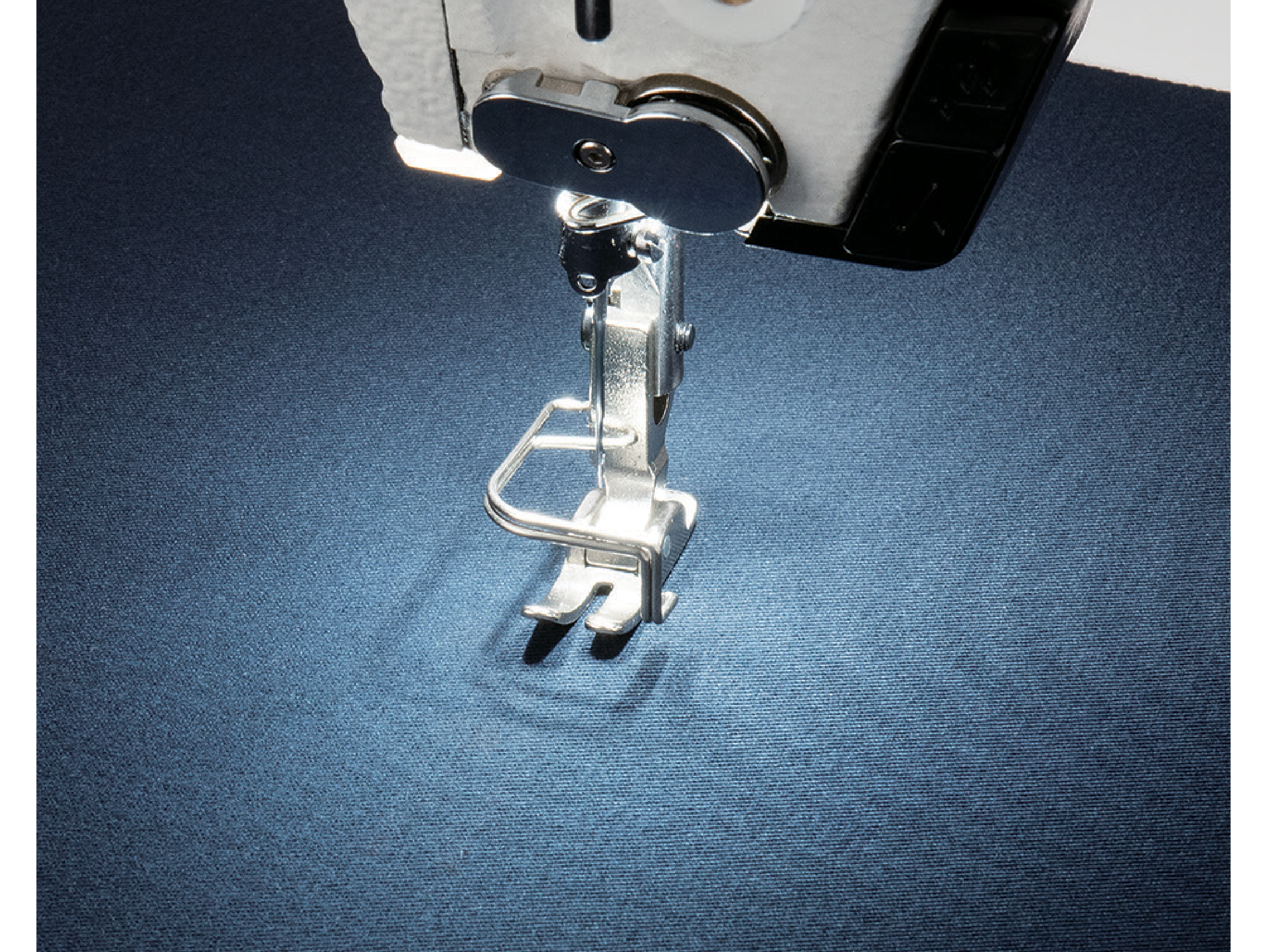

The LED light is located on the underside of the arm jaw. It reduces operator fatigue and improves work efficiency. It is provided as standard for all models ofthe L-1A Series. In addition, the illuminance of the LED lights can be adjusted in three steps and can be used as an auxiliary light for work.
The machine adopts a single-blade drive rotary thread-trimming mechanism, so it is easy to maintain.
